In the motor controller assembly process, the assembly quality of the PCBA circuit board directly determines the operational stability and safety of the product. Among these, the cleanliness of the circuit board surface and screw cleanliness are easily overlooked yet crucial aspects. If screws carry impurities into the assembly process, they can easily cause short circuits or open circuits, leading to functional failure of the motor controller. Therefore, implementing clean assembly has become an industry consensus, and clean screw feeding, as a core component, directly affects assembly reliability through its equipment selection and application effectiveness. Choosing appropriate clean screw feeding equipment can avoid assembly risks caused by impurities from the source, laying a solid foundation for the quality of motor control products.

Why is Clean Screw Feeding So Critical in Motor Electronic Control PCBA Clean Assembly?

The PCBA circuit board of motor controllers integrates a large number of precision circuit components with small spacing between elements and high sensitivity, imposing strict requirements on the assembly environment and component cleanliness. Ordinary screw feeding equipment cannot remove dust, oil, and other impurities from screw surfaces during the feeding process. These impurities, once entering the assembly position with the screws, will adhere to the circuit board surface or screw connection points. During long-term use, impurities may cause short circuits, leading to sudden controller failures; if impurities block circuit nodes, they can also cause open circuits, affecting normal motor operation. Clean screw feeding equipment, however, can achieve impurity removal throughout the entire feeding process, ensuring screws entering the assembly stage are clean and contamination-free, thereby fundamentally improving assembly safety.

To Achieve Efficient Clean Screw Feeding, Step-Type Screw Feeding Machines Are the Preferred Choice for Motor Electronic Control PCBA Assembly

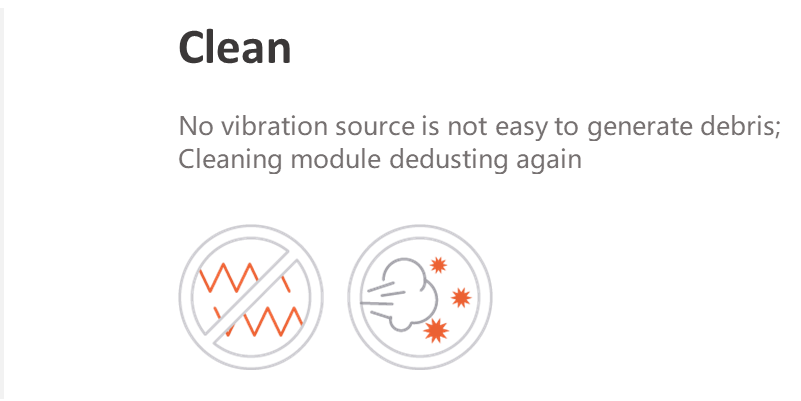

The core advantage of this equipment lies in embedding a multi-stage cleaning system throughout the entire screw feeding process, achieving step-by-step cleanliness control from key stages such as material pushing, loading, and blowing. During the pushing stage, the equipment removes large impurities attached to screw surfaces through flexible pushing structures; during the loading process, it separates fine dust-like impurities through filter components; the blowing stage further cleans residual impurities in screw gaps through clean airflow. The coordination of multiple stages ensures screw cleanliness. When paired with corresponding clean screw feeding processes, every screw can meet PCBA clean assembly requirements, significantly improving assembly reliability and reducing product failure probability caused by impurities.

When Selecting Clean Screw Feeding Equipment, Comprehensive Consideration Should Be Given to the Actual Scenarios of Motor Electronic Control PCBA Assembly. Specific Attention Can Be Paid to the Following Two Points:

1. Prioritize Selecting Clean Screw Feeding Equipment with a Multi-Stage Cleaning System

Different clean screw feeding equipment varies significantly in cleaning mechanisms. Some simple equipment can only achieve impurity removal in a single stage, which cannot meet the high cleanliness requirements of PCBA assembly. The multi-stage cleaning system equipped on step-type screw feeding machines can effectively remove impurities of different types and sizes, delivering better cleaning results. When selecting equipment, it is necessary to confirm whether the equipment's cleaning stage settings cover the entire screw feeding process, ensuring effective cleaning at every step from when screws enter the equipment to when they reach the assembly position, avoiding impurity residue.

2. Select Appropriately Sized Clean Screw Feeding Equipment Based on Screw Specifications and Production Line Layout

Motor electronic control products use diverse screw specifications, and the capacity and structure of the feeding equipment must match these specifications. For example, for conventional specification screws, a clean screw feeding equipment with 0.8L capacity can be selected. This equipment features a compact structure, requires no large production line space, supports desktop placement, and can flexibly adapt to different production line layouts. Simultaneously, it is necessary to confirm whether the equipment's feeding channel can accommodate the corresponding screw specifications to avoid feeding jams or incomplete cleaning caused by mismatched channel sizes, ensuring the equipment matches production needs.

Additionally, during the use of clean screw feeding equipment, daily maintenance work must be performed properly. Regularly inspect the operating status of equipment cleaning components, timely replace aging filter components; clean up internal impurity accumulation to ensure the cleaning system always maintains good working condition. Simultaneously, standardize equipment operating procedures to avoid affecting clean screw feeding effectiveness due to improper operation, further ensuring PCBA clean assembly quality.

In motor electronic control PCBA clean assembly, clean screw feeding is a critical link in ensuring circuit stability and product safety. Selecting clean screw feeding equipment with multi-stage cleaning systems that matches production needs can remove screw impurities from the source, improving assembly reliability. For manufacturing enterprises, emphasizing equipment selection and application in the clean screw feeding stage can not only reduce product failure probability but also enhance product reputation and market competitiveness, laying a foundation for long-term enterprise development.
