Know more about screws
Select a stable &
suitable Screw Feeding & Tightening System
suitable Screw Feeding & Tightening System
Define Tightening Safety Levels
| Screw Classification | Harmfulness | Common Stations | Requirements for Screw Driver |
| Class-A Safe& Important | Connection failure→casualties | Braking/steering system, engine, tyre, safety belt, seat etc. | Simultaneous torque/rotation angle measurement, real data feedback, data recording and tracing, NG fault identification 5%(Torque accuracy) |
| Class-B Importan | Connection failure→dysfunction | Wiper Panel air conditioner etc. | Torque or angle control, Ensure tightening torque and quantity correct. NG Fault identification. 5-10%(Torque accuracy) |
| Class-B Importan | Connection failure→customer complaints | Interior parts such as car trunk, sunroof and sun visor | Torque or angle control, Ensure tightening torque correct. 10-20%(Torque accuracy) |
*

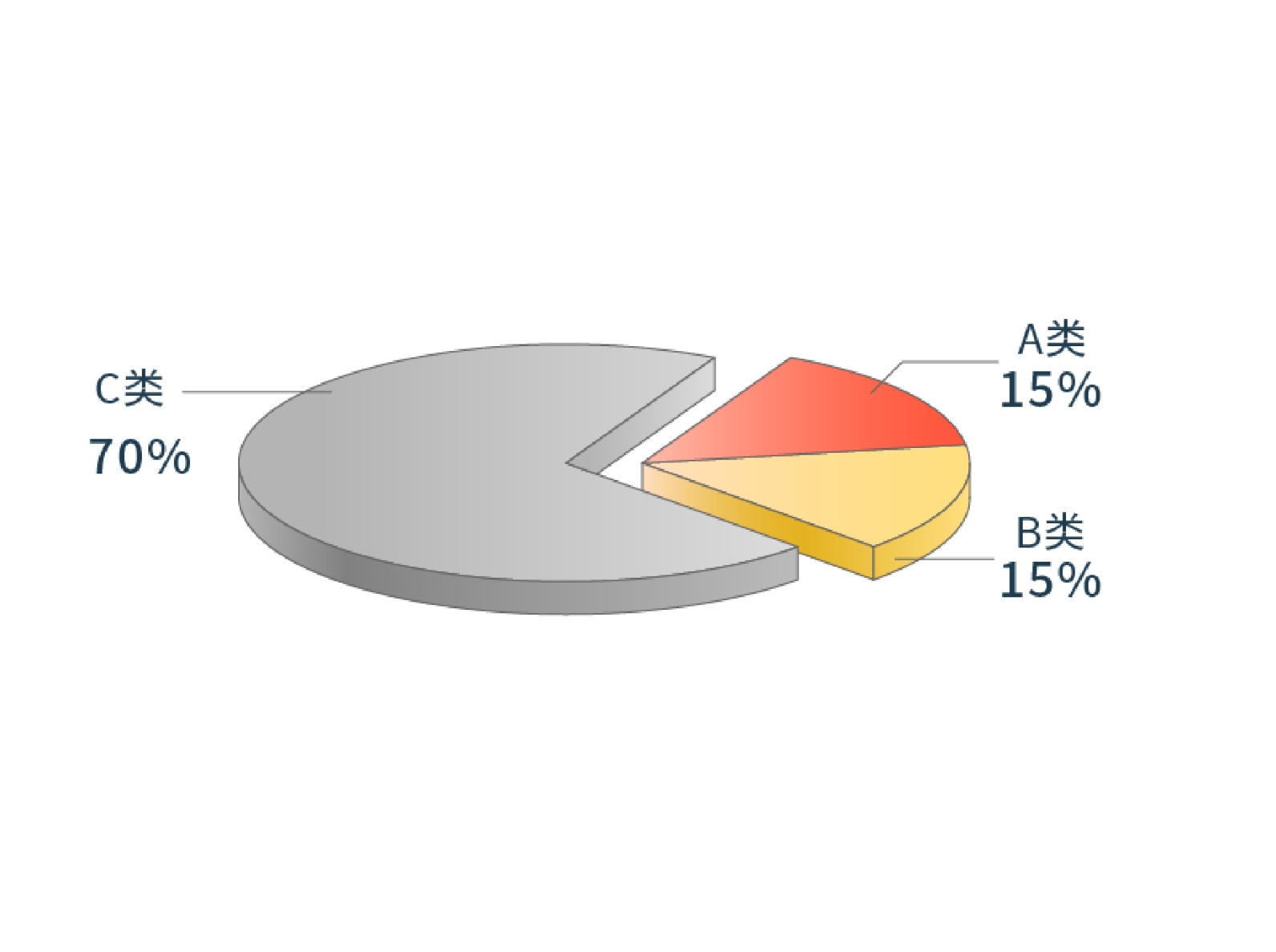

* The percentage of different tightening levels during the vehicle assembly process.
Follow the screwdriver selection path
C：Standard
Product consistency

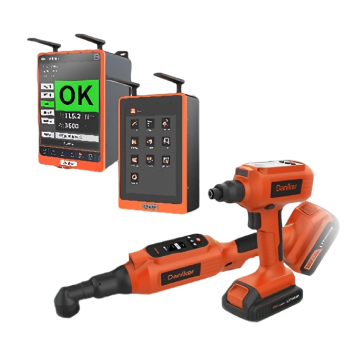

Impact wrench、Pneumatic pulse、Clutch、Electric pulse
B：Important

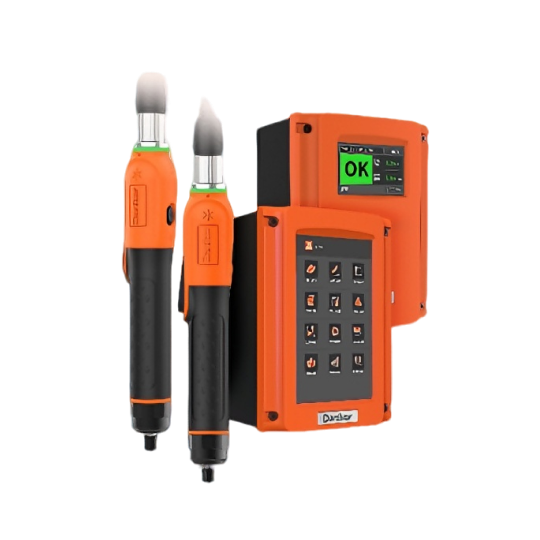

Current Screwdriver
Electric
A：Safe & Important

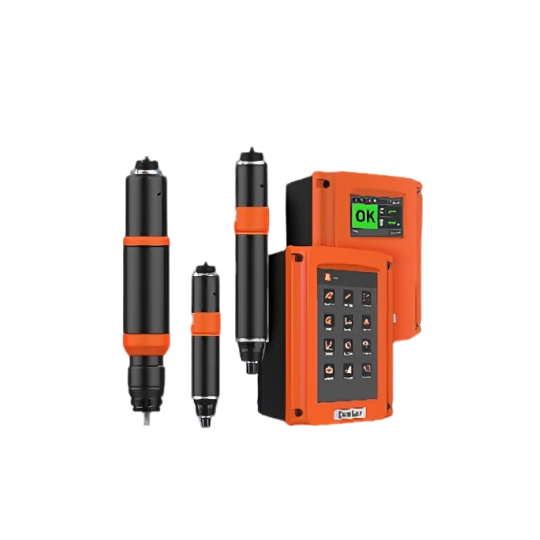

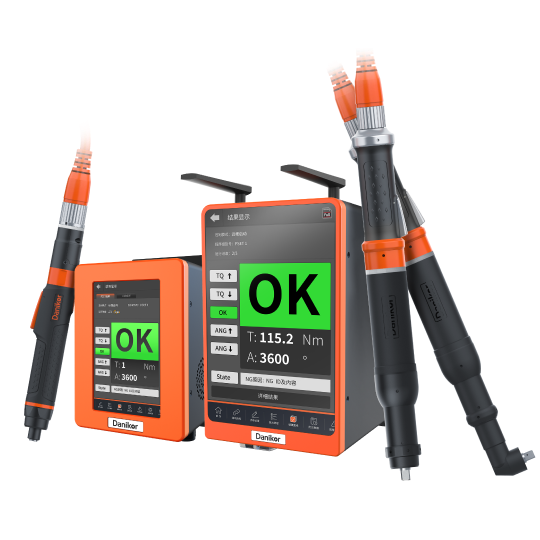

Transducer Screwdriver
Transducer、Torque Accuracy
精准匹配您的需求

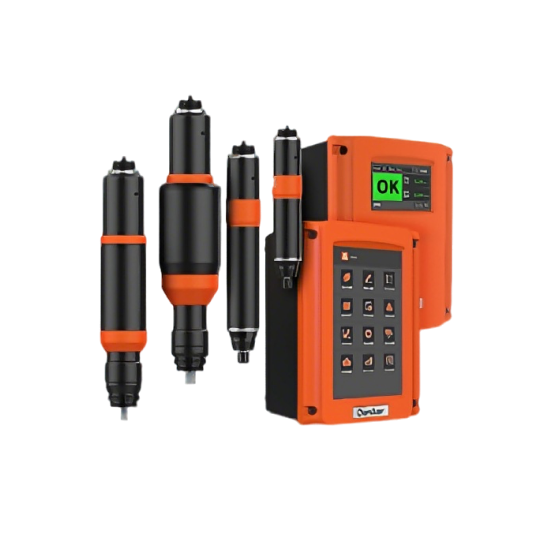

Transducer
6σ±5%
Transducer
Accuracy for <20% of the measuring range: 6σ ± 10%
Accuracy for ≥20% of the measuring range: 6σ ± 7.5%
Accuracy for ≥20% of the measuring range: 6σ ± 7.5%

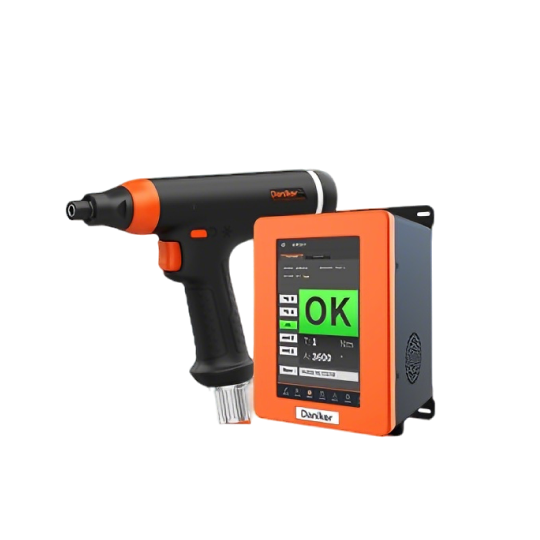

Current
6σ±5%
Screw Application
The Effect of LDR:
Select Stable & Suitable
Screw Feeding & Tightening System
Tolerance According To Screw Size:
Feasibility Of Screw Feeding
LDR≤1.3
Top-heavy, not easy to get into feed rail
Top-heavy, not easy to get into feed rail
there is a risk that the screws could jam inside the screw blowing tube
Low probability of screws enter- ing the track not
suitable for blow screw
suitable for blow screw
LDR 1.1~1.3
Easy to jamming in the screw blowing tube
LDR＞1.3
Passed smoothly
High probability of screws entering
the track suitable for blowing
the track suitable for blowing
LDR＞1.3
Stable blowing
Know more about operating conditions
Make sure that automatic screw feeding and tightening are more efficient
Tightening Position
No interference
One-side interference
Multi-sides interference
Countersink
Nozzle Analysis
Normal
Blow Screw
Vacuum
Swivel Tube
Blow Screw
Vacuum
Swivel Mouthpiece
Blow Screw
Vacuum

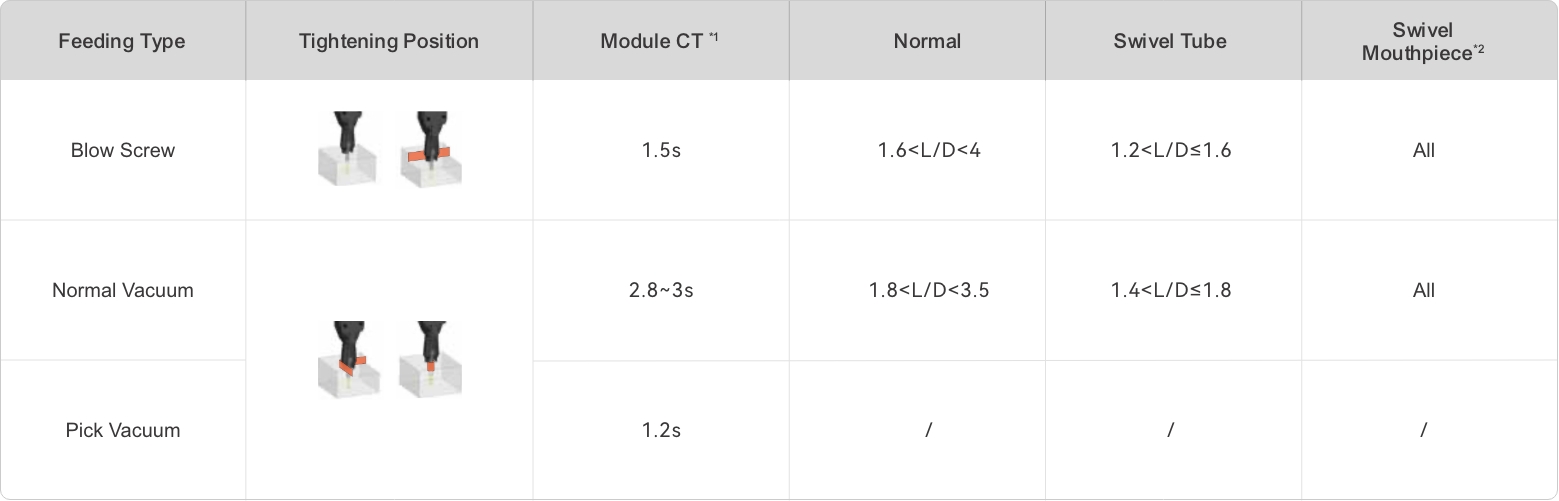

Recommend L/D range
*1 Only tightening module executing time, screwdriver tightening time is not included.
*2 Screw blowing is avaliable.
