Disc Feeder

Suitable Screw Size:M0.5-M2

The Danikor Disc Screw Feeder is an exceptionally reliable machine. It uses a rotating disk to position one fastener at a time in a precise location for easy retrieval. Fasteners can be picked up using either a magnet or vacuum. This feeder is designed specifically for micro and mini screws in the electronics industry, ensuring zero jams.

Product Advantages

No Screw Jamming

► Patented products, stable material supply, improve production efficiency.

Low Failure Rate

► Intelligent fault alarm, easy maintenance and replacement.

Wide Application Range Of LDR

► Screws with LDR ≤ 1 can also be driven stably and efficiently.

Lack Of Material Detection

► Standard material shortage sensor,early warning in case of material shortage, to ensure the continuity of the feeding process and uninterrupted production.

Screw Length Detection (optional)

► Prevent mixing and improve product qualification rate.

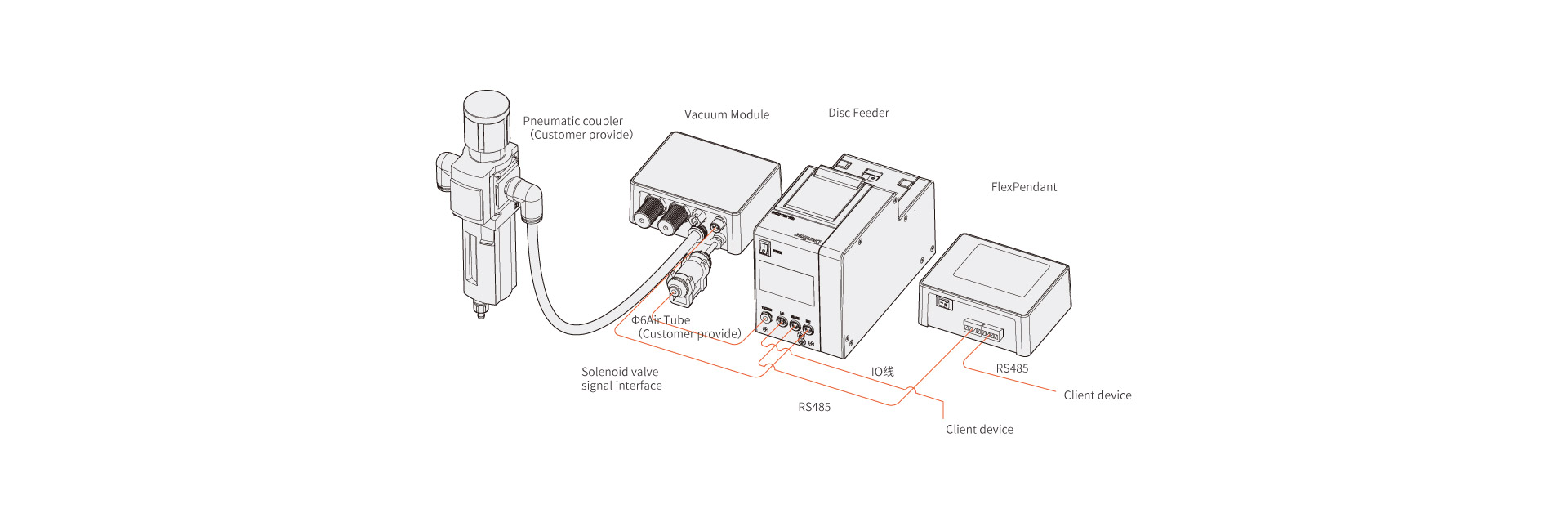

Product Structure

Product Parameters

Model	FDH-SDC-70ML-BCG6- 00D0000000-T00	FDH-SDC-70ML-BCG6- 00D0000L00-T00	FDH-SDC-120ML-C1- G6-00D0000000-T00	FDH-SDC-120ML-C1-G6-00D0000L00-T00
Channel type	Single channel
L * W * H/mm	175x90x133		159x82x110
Weight/Kg	1.9		1.2	1.3
Capacity/ml	70		120
Rated air pressure/Mpa	0.5-6
Power source V/Hz	Equipment voltage DC24V (IO or 485 access device provides power supply)
Rated power/W	24
Air consumption m3/min	0.09
Inlet pipe diameter/mm	8
I/O m	2
Shortage function	○	○	○	○
Screw Length Detection	-	○	-	○
Detection accuracy/mm	-	±0.2	-	±0.2
FlexPendant	Optional
Vacuum Module	Optional Muffler type Or quick plug

Type	Model	L * W * H mm	Category	Cable	Vacuum Module
Vacuum Module	OFD-SVM-00-V1-M	102x80x40	OFD-SVM-00-V1-M	Including 2m three-core communication line	1
Vacuum Module	OFD-SVM-00-V1-Q	102x80x40	OFD-SVM-00-V1-Q	Including 2m three-core communication line	1
FlexPendant	OFD-SFP-00-V3	102x86x40	OFD-SFP-00-V3	Including 2m RS485 four-core wire	-

* The above data is the measured value in the laboratory.

Feeder-scope Of Application For Screws

Screw feeder model	Thread diameter M	Screw length L	Cap diameter D	Cap thickness T	LDR
FDH-SDC-70ML	1~2mm	Max. 7.5mm	Max. 7.5mm	0.15~2mm	LDR：(L+T)/D≤1
FDH-SDC-120ML	0.5~1.6mm	Max. 5.5mm	Max. 5.5mm	0.15~2mm	LDR：(L+T)/D≤1
