Transducer Intelligent Screwdriver

TBD TBE Impulse Cordless Transducer Screw Driver

Torque Range：0.4-80Nm

An intelligent tightening screwdriver engineered for industrial scenarios. It features a built-in control system and barcode scanning module, consolidating multiple functions into a single device. With assured data integrity and extended battery life, it integrates portability, intelligence, and high performance, making it suitable for a variety of flexibly deployed workstation scenarios.

Request a Quote

Product Advantages

All-in-One Design, Comprehensive Functionality

Built-in Controller

Integrates strategy setting, data collection, and MES upload into one device; Supp standalone operation offline, with data stored locally.

Built-in Scanning Function

Simplifies program integration and reduces equipment requirements.

Data Loss Prevention, Full Traceability

Instant WiFi Connection, Stable Signal

Supports high-speed data transmission in diverse scenarios.

Offline Data Protection

Ensures data integrity and prevents loss.

Robust structure Enhanced stability and durability

TBE Series:

Anti-vibration structure with reinforced chassis ensures operational precision and stability.

TBD Series:

Ultra-lightweight body made of low-density, lightweight glass fiber composite material reduces fatigue during prolonged use and ensures comfortable operation.

Drop-resistant

Withstands 1.5m drops from multiple angles without performance impact.

Long-lasting durability

Maintains precision through 500,000 fastening cycles.

Long Battery Life, Reliable Continuous Assembly

8020 continuous fastening (􏚴36V)

2500 continuous fastening (18V)

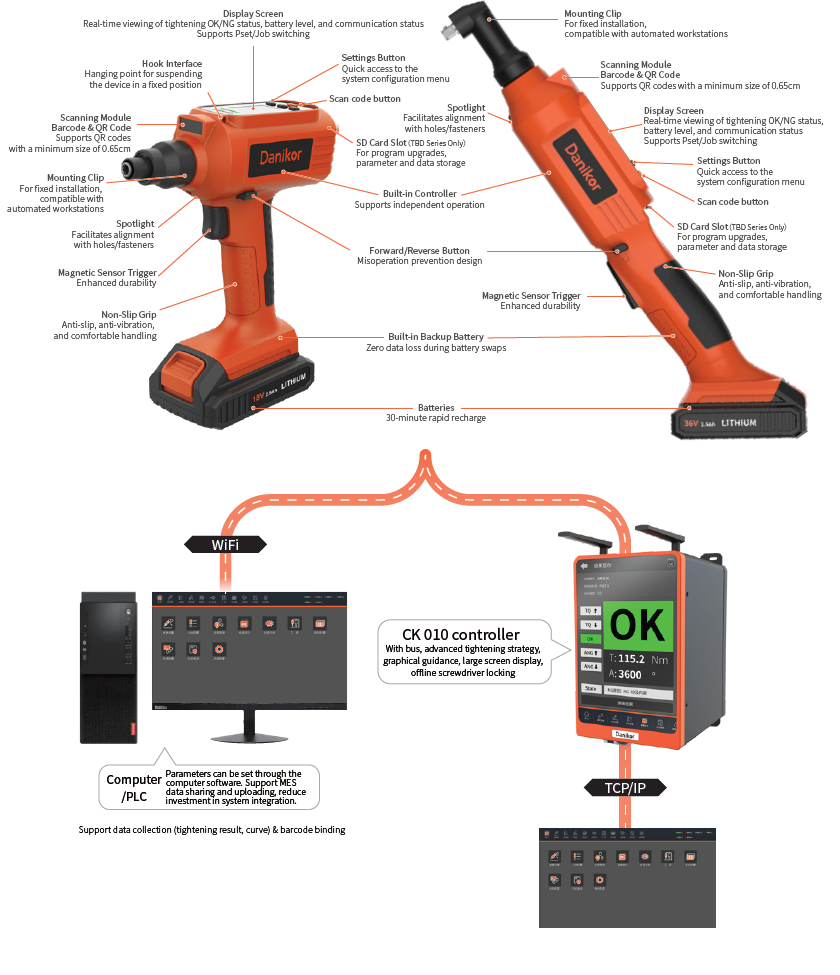

Product structure — TBD&TBE Series

Product Parameters

	Model	Max speed rpm		Model	Max Torque Nm	Max Speed rpm	Grip diameter mm	Design Life	MTTF	Bit quick connector
TBE Pistol Grip Type	PTB-EPH-0020N-42-H1P-000-B	3000	TBD - Pistol Grip Type	PTB-DPH-0020N-42-H1P-000-B	0.4-2	3000	42	>1000万次	>100万次	HEX1/4"
	PTB-EPH-0040N-42-H1P-000-B	2070		PTB-DPH-0040N-42-H1P-000-B	0.8-4	2422	42	>1000万次	>100万次	HEX1/4"
	PTB-EPH-0080N-42-H1P-000-B	960		PTB-DPH-0080N-42-H1P-000-B	1.6-8	1120	42	>1000万次	>100万次	HEX1/4"
	PTB-EPH-0120N-42-H1P-000-B	690		PTB-DPH-0120N-42-H1P-000-B	4-12	807	42	>1000万次	>100万次	HEX1/4"
	PTB-EPH-0200N-42-S2P-000-B	470		PTB-DPH-0200N-42-S2P-000-B	5-20	433	42	>1000万次	>100万次	HEX1/4"
TBE - Angle Type	PTB-EAH-0060N-45-S2P-000-B	3000	TBD - Angle Type	PTB-DAH-0060N-45-S2P-000-B	1.2-6	3000	45	>1000万次	>100万次	S 3/8"
	PTB-EAH-0100N-45-S2P-000-B	1900		PTB-DAH-0100N-45-S2P-000-B	2-10	1900	45	>1000万次	>100万次	S 3/8"
	PTB-EAH-0180N-45-S2P-000-B	1050		PTB-DAH-0180N-45-S2P-000-B	3.6-18	1050	45	>1000万次	>100万次	S 3/8"
	PTB-EAH-0300N-45-S2P-000-B	720		PTB-DAH-0300N-45-S2P-000-B	6-30	720	45	>1000万次	>100万次	S 3/8"
	PTB-EAH-0450N-45-S2P-000-B	450		PTB-DAH-0450N-45-S2P-000-B	9-45	450	45	>1000万次	>100万次	S 3/8"
	PTB-EAH-0800N-45-S3P-000-B	230		PTB-DAH-0800N-45-S3P-000-B	16-80	230	45	>1000万次	>100万次	S 1/2"
