Fixed CurrentIntelligent Screw Driver TCA

Torque Range：0.1-200Nm

Designed for economical applications, it combines high performance and compact design, realizes intelligent and digital screw tightening, and efficiently meets the needs of cost control, which is a truly cost-effective choice.

Application Industry

New energy vehicles

Automotive electronics

Automotive parts

Communication

Home appliances

Medical care

Request a Quote

Product Advantages

Accuracy

6σ ±7.5% accuracy over the Full torque range.

Accuracy test of hard& Soft connection conforms to ISO5393 standard.

Self-developed high precision algorithm control

Fast

More tightening steps

Flexibility to respond to applications with different requirements.

More tightening strategies

Support angle control, torque control, speed control, angle/ torque control; Self-learning strategy, automatic generation of tightening strategy for setting parameters.

More tightening Psets

Reduce setup time between different tightening requirements.

Intelligent

Monitor the whole process

Tightening data such as torque, angle and speed, including OK/NG number, times and qualification rate.

Real-time data upload

Real-time display of tightening results and realtime docking with MES system.

Data storage

You can hold more quantities and filter the number of results that are analyzed for a given program or time period.

Data storage

200 thousand sets of tightening results can be stored and filter the number of results that are analyzed for a given program or time period

Data traceability

Supports 14 curve overlay analysis and tightening data CP/CPK analysis.

Errorproofing

Monitoring of abnormal tightening process

All-round data monitoring, timely detection of floating locks, sliding teeth,wrong and missing, gasket missing and other unqualified tightening situation.

Assembly process authority management

The debugging interface needs to input the password to set the strategy and program, and if you do not operate within the set time, you will automatically log out.

Job planning and superposition protection

If Job batch is inconsistent, it is required to enter password for intervention.

Convenient

Superior human-computer interaction

Large screen version: Support policy parameter setting and real-time view of tightening curve; support permission configuration. Small screen version: View the tightening result in real time; support the modification of password setting.

Multiple communication forms

One network port is extended to three ports, two TCPIP ports and 􏚲-channel Modbus _ TCP, IO, supporting controller,PLC and MES are connected in series simultaneously.

Statistics of calibration information

Support the import of sensor calibration data and automatic calculation of K value.

Switch between Chinese and English systems.

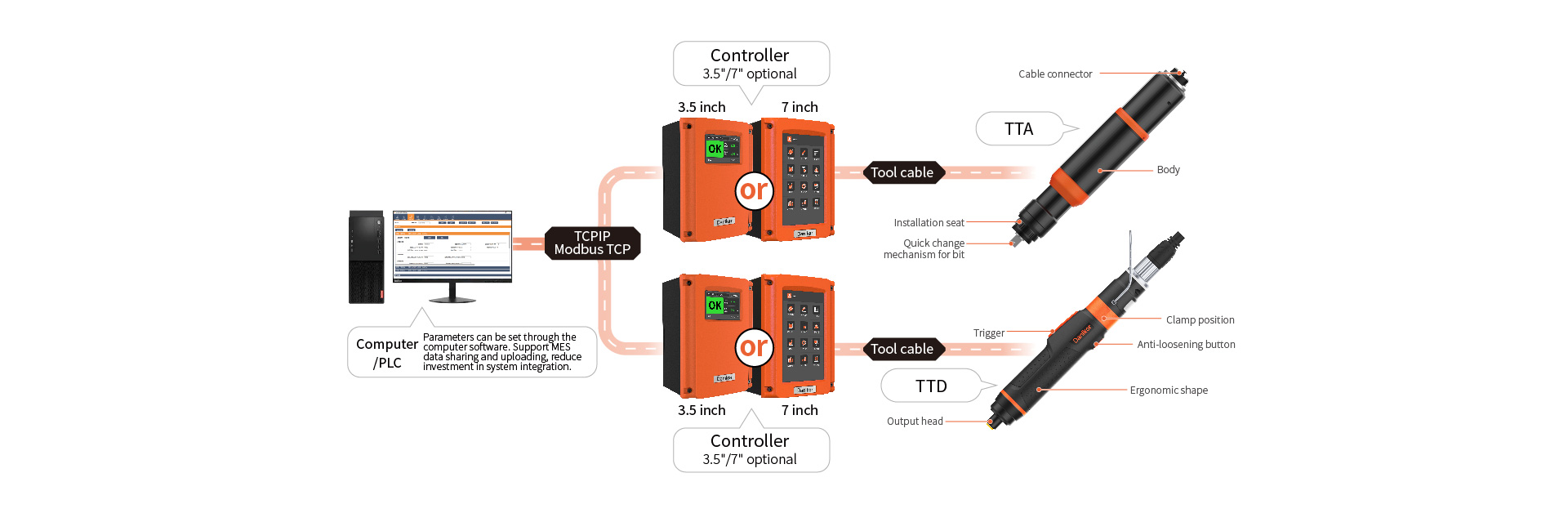

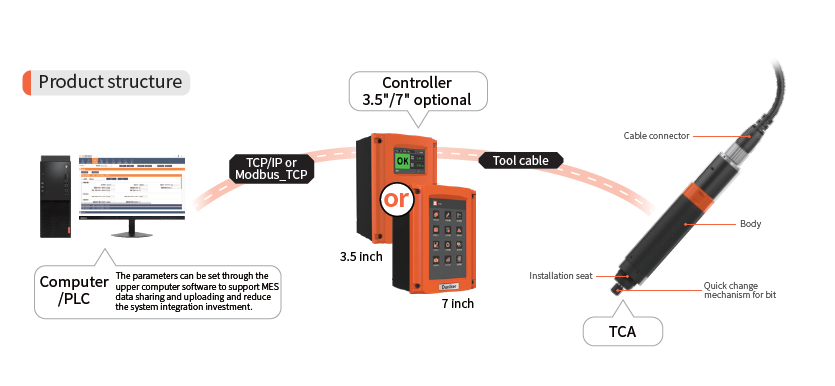

Product Structure

Product Parameters

Model	Max torque/Nm	Max speed/rpm	Accuracy	Size /mm	Weight/kg	Free range of head mm	Bit quick connector	Screw driver controller	Screw driver cable
PTT-ASF-5000M-0-H10-000-B	0.1-0.5	3000	6σ ±7.5%	239*45	0.832	-	Hex 1/4"	OPT-STC-C1-V3-130W / OPT-HTC-C1-V3-130W	5m/10 m/15m/20m Straight or Angle optional
PTC-ASF-0014N-0-H10-000-G3	0.2-1.4	3000		239.2*45	0.890	-	Hex 1/4"
PTC-ASF-0045N-0-H10-000-G3	0.7-4.5	1800		280.7*45	1.11	-	Hex 1/4"
PTC-ASF-0070N-0-H10-000-G3	1-7	1200		287*45	1.12	-	Hex 1/4"
PTC-ASF-0120N-0-H10-000-G3	4-12	545		301.2*45	1.44	-	Hex 1/4"
PTC-ASF-0200N-0-S20-000-G3	5-20	1870		334.4*61	2.63	-	S 3/8"	OPT-STC-C1-V3-800W / OPT-HTC-C1-V3-800W
PTC-ASF-0500N-0-S30-000-G3	6-50	555		345.4*61	2.70	-	S 1/2"	OPT-STC-C1-V3-800W / OPT-HTC-C1-V3-800W
PTC-ASF-0800N-0-S30-000-G3	10-80	555		365.9*81	3.96	-	S 1/2"	OPT-STC-C1-V3-1300W / OPT-HTC-C1-V3-1300W
PTC-ASF-1300N-0-S30-000-G3	20-13	444		380.9*81	4.77	-	S 1/2"
PTC-ASF-2000N-0-S40-000-G3	30-200	293		386.4*81	4.92	-	S 3/4"
PTC-ASF-0200N-0-S20-030-G3	5-20	1870		426*61	3.11	30	S 3/8"	OPT-STC-C1-V3-800W / OPT-HTC-C1-V3-800W
PTC-ASF-0500N-0-S30-050-G3	6-50	555		485.5*61	3.27	50	S 1/2"	OPT-STC-C1-V3-800W / OPT-HTC-C1-V3-800W
PTC-ASF-0800N-0-S30-050-G3	10-80	555		506*81	4.53	50	S 1/2"	OPT-STC-C1-V3-1300W / OPT-HTC-C1-V3-1300W
PTC-ASF-1300N-0-S30-050-G3	20-130	444		513*81	6.04	50	S 1/2"
PTC-ASF-2000N-0-S40-050-G3	30-200	293		520.5*81	5.99	50	S 3/4"
