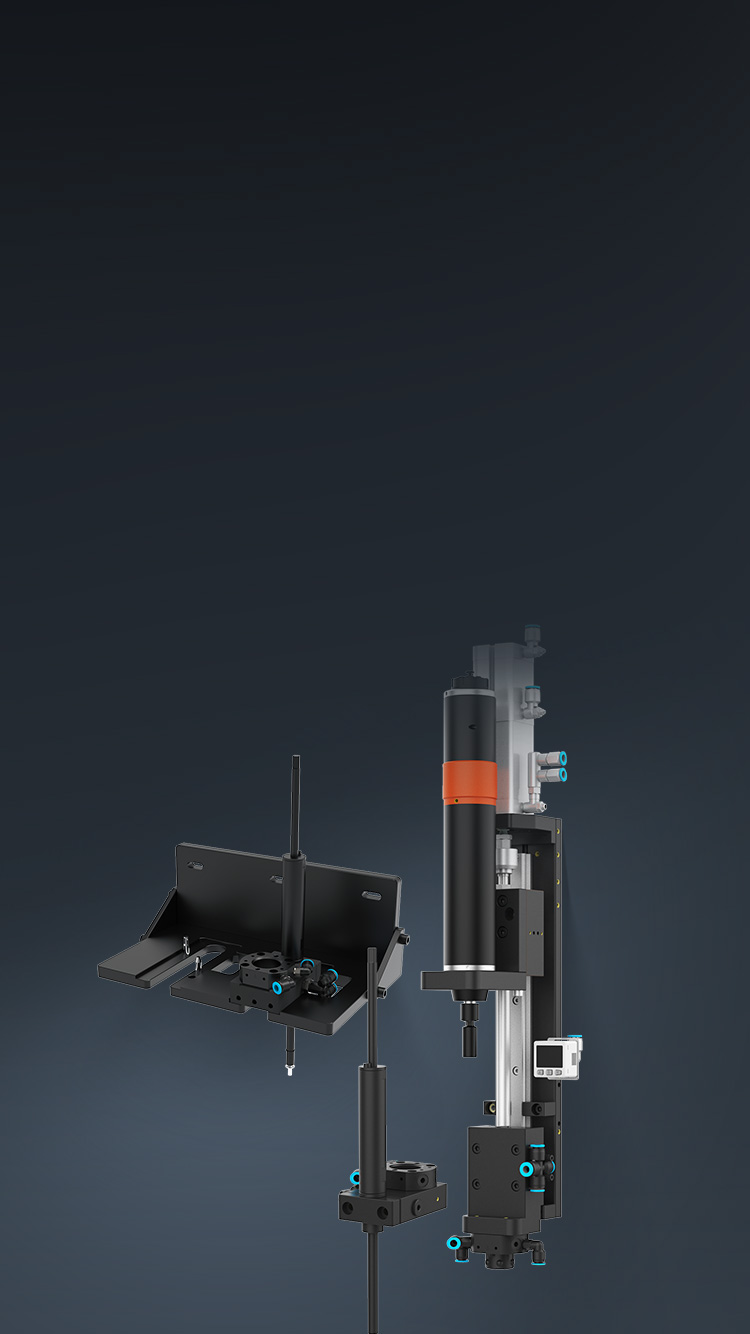

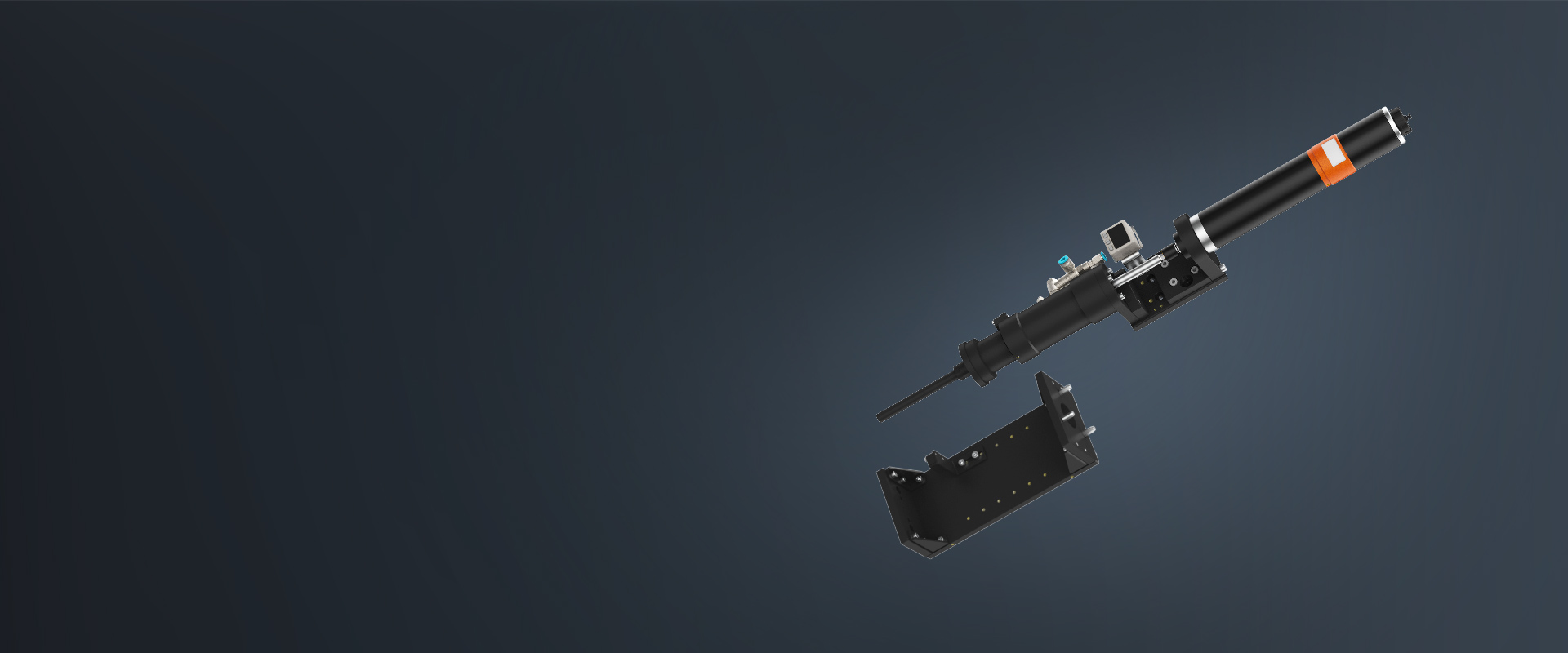

Quick-change Screwdrivers Module

Quick-change Screwdrivers Module(Automatic Station)

Torque range: 0.3~35Nm

Different screws can be tightened by matching them with various tightening female heads, making it suitable for applications involving multiple types of screws or continuous production lines that require frequent type changes. It can be integrated with Intelligent Screw Drivers, incorporated into robots, three-axis systems, and other mobile mechanisms, and used in conjunction with receiving tables.

Request a Quote

Product Advantages

High adaptability

Compatible with tightening tools from multiple brands

Can be used with robots that have/do not have force control modes;

Offers a wide range of application scenarios.

► And that expandability is strong

Lightweight structure

The module structure has been optimized, with a weight as low as 2.3kg (including the propulsion mechanism but excluding the tool)

Suitable for use with 5kg robots.

Flexible model switching

One machine for multiple uses;

Suitable for co-linear assembly scenarios with different materials

Foolproof & mistake-proof

The fixed base has circumferential limiting to prevent easy jamming;

A reflective sensor monitors the status of the female connector in real-time.

Product Parameters

Version Type	Operating Mode	Collision Avoidance Height	Pick-up Method	Weight (excluding screwdriver & cables)	Size	Cap Diameter Range
Lightweight version-15Nm	Force Control Mode	60/100/150/200mm	Vacuum-Magnetic Clamp	2.2kg	398.590.595	≤15mm


Regular version-15Nm	Position Control Mode			3.6kg	57012195	≤15mm
Regular version-35Nm				6.5kg	726155100	≤15mm

Releated Cases

Automotive Industry

It covers the assembly application scenarios of various parts and components, and drives the intelligent assembly of automobile manufacturing industry to achieve high-quality and high-efficiency development.

Energy Storage Industry

Focus on the innovation of automatic feeding and intelligent tightening technology to ensure the safety and stability of energy storage products.
