Danikor Screw Dispenser & Presenter

Screw Drum Feeder

Optional: Screw cleaning function Screw length detection Scan code to open cover (control screw supply process) Screw full detection (in case there are too many screws in the hopper) Lack of screw detection (in case lack of screws in the hopper)

Request a Quote

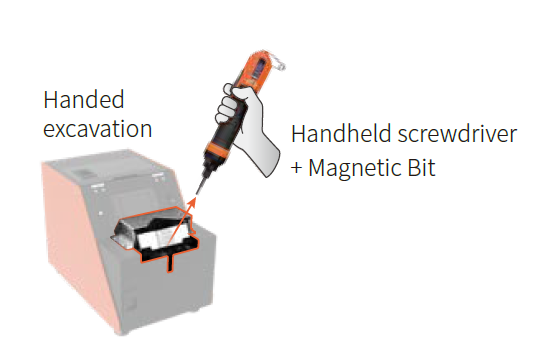

Handed Feeder

handed screw dispenser

Manually remove screws from the head and count them.
The screw needs to be magnetically attractable.
With manual intelligent screwdriver.
Magnetic bit.
Single screw excavation on the machine.

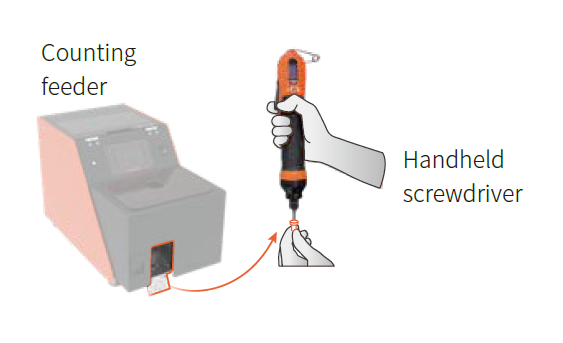

Counting feeder

counting screw feeder

Screw feedinging according to set quantity.
The number of screws is controlled, and the manual station
can effectively prevent the occurrence of screw missing.
With manual intelligent screwdriver.
Tighten the screw by placing it on the bit or in the product hole.

Product Details

产品规格表

Series	FDH-SDT
Suitable Model No.	FDH-SDT-450mL-H1 FDH-SDT-900mL-H1 FDH-SDT-450mL-CT FDH-SDT-900mL-CT
Dimension(LWH)mm	270×154×234 (H1-450mL) 309×190×235 (H1-900mL) 337×154×234 (CT-450mL) 355×190×255 (CT-900mL)
Weight	7kg (450mL) \| 9.4kg (900mL)
Capacity	450mL, 900mL
Voltage	DC24V
Power	36W
Air Connection Size	Φ6mm(Air supply is not required for standard model)
Screw sticking rate	0.03-0.05%(Standard Screw); 0.05-0.08%(Screws with washer)
Feed Rate	Max. 50pcs/min
