In modern manufacturing, integrating torque screwdrivers with a Manufacturing Execution System (MES) is a key direction for technological innovation. Through this integration, companies can achieve more efficient production processes, improved quality control, enhanced data management, and optimized resource allocation. Below, we explore the advantages of torque screwdrivers that can interface with an MES.

First, what capabilities must a torque screwdriver possess in order to connect to an MES?

Using Danikor torque screwdrivers as an example, the following points summarize the required features:

Data-communication capability

• The electric torque screwdriver must be able to transmit operating data—such as torque value, angle, and operation time—to the MES in real time.
• It must support common industrial communication protocols (e.g., TCP/IP, I/O, RS-485, Modbus) to ensure compatibility with existing MES installations.

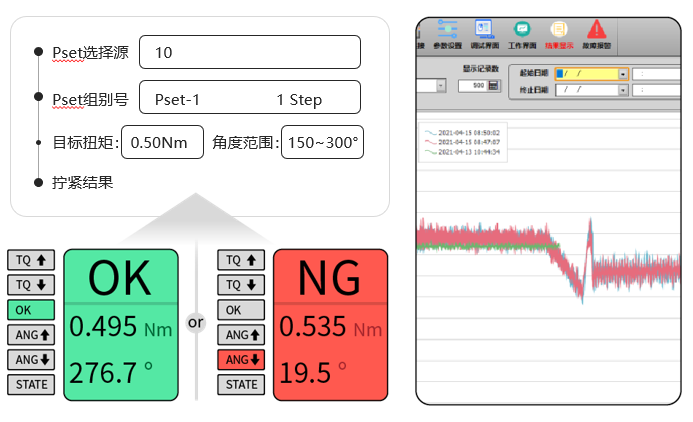

Real-time feedback and control

• Torque settings can be adjusted in real time based on feedback from the MES, ensuring every tightening operation meets preset standards.
• The screwdriver can receive an immediate stop command from the MES to prevent over-tightening or incorrect operation.

High-precision torque and angle control

• Provides high-precision torque output with an error range within industry standards—typically ±2.5 % or better.
• Accurately measures and controls tightening angle, which is critical for applications that require a specific tightening sequence.

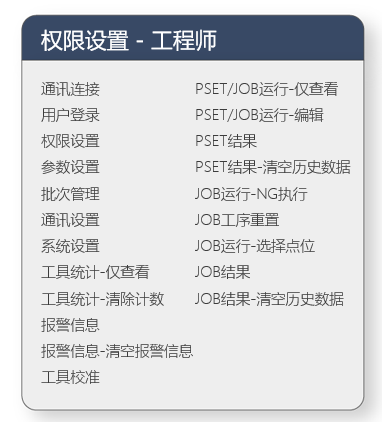

User authentication and operator management

• Supports operator login and authentication to ensure only authorized personnel can use the tool.
• Records usage data for each operator, aiding productivity tracking and quality control.

Programmable and customizable operations

• Allows different torque and angle settings to be programmed for different production tasks.
• Supports the creation of operating modes to adapt to various assembly requirements and specifications.

Data logging and storage

• Includes onboard storage to temporarily hold operating data when real-time transmission is unavailable.
• Supports data trace-back and historical-record access for post-analysis and troubleshooting.

What are the benefits of integrating with an MES?

Torque screwdrivers that can connect to an MES greatly improve line efficiency through automated data collection and real-time feedback. Traditional data recording relies on manual entry, which is time-consuming and error-prone. Automatic data capture ensures accuracy and immediacy; operators receive instant feedback about whether the applied torque meets specifications, allowing rapid adjustments and reducing production delays. Additionally, the MES can automatically adjust production plans and process scheduling based on real-time data, minimizing machine and operator idle time and boosting overall line efficiency.

Strengthened quality control

By applying precise torque at every step, MES-connected torque screwdrivers ensure each assembly meets strict quality standards. The MES can monitor torque application in real time, automatically detect and log any deviations, and issue immediate alerts. This real-time monitoring and automatic adjustment significantly improve product consistency and reliability, lower defect rates, and eliminate costly rework or recalls caused by quality issues.

Data-driven decision support

Data generated by torque screwdrivers integrated into the MES can be used for in-depth analysis and reporting, providing management with critical information for decision-making. Data analytics can reveal production trends and patterns, identify inefficiencies, and optimize resource allocation and scheduling. Long-term data accumulation can also predict equipment failures, enabling proactive maintenance and preventing unexpected downtime.

Enhanced transparency and traceability

MES-connected torque screwdrivers provide not only real-time data and feedback but also greater production transparency. Data for every operation is accurately recorded and stored, making the entire production process traceable. This is especially important in industries that must adhere to stringent quality and safety regulations—such as aerospace, automotive, and medical-device manufacturing. Traceability helps quickly locate root causes when problems arise, implement preventive measures, and supply the transparency required by customers and regulatory bodies.

Improved customer satisfaction

By ensuring efficient production and consistent product quality, MES-connected torque screwdrivers raise final-product quality and, in turn, customer satisfaction. Fewer defects and faster delivery times allow companies to better meet customer demands, strengthening customer loyalty and market competitiveness.

By integrating MES-compatible torque screwdrivers, companies can leverage modern technological advantages to achieve refined management and automated control. This not only improves operational precision but also enhances overall manufacturing efficiency and quality. Such integration is a vital step toward smart manufacturing and Industry 4.0. For manufacturers seeking to remain competitive in the global market, understanding and investing in these technologies is essential. Through this approach, companies can achieve significant improvements in production efficiency, quality control, cost management, and market responsiveness.
