The manufacturing of automotive parts is rapidly evolving towards greater variety, smaller batch sizes, and higher precision. As the "front-end gateway" of the assembly process, the tray loading and feeding stage directly impacts production line takt time, product yield, and production stability. Many companies still rely on manual tray loading or traditional rigid equipment, where issues related to efficiency, cost, and quality are becoming increasingly prominent. Danikor's "Flexible Trio" tray loading equipment precisely addresses these industry pain points with a flexible solution, injecting efficient momentum into automotive parts production.

I. Core Pain Points in the Automotive Parts Tray Loading Process

1. Efficiency Bottlenecks Difficult to Match with Production Line Takt Time

The pace of automotive parts production is constantly accelerating, and the efficiency shortcomings of manual tray loading are becoming more apparent. A skilled worker can only complete the tray loading of 800-3,000 parts per hour, and efficiency tends to decline due to fatigue after continuous operation. This makes it difficult to keep up with the high takt time of automated production lines, leading to poor synchronization between upstream and downstream processes and causing "production flow interruptions." While some traditional rigid equipment offers higher efficiency, they are adapted for only a single type of part and cannot handle the mixed-line production demands of multiple vehicle models and part specifications, resulting in high equipment idle rates.

2. Complicated Changeovers, Difficult to Adapt to Multi-Variety Production

Currently, with rapid model iterations in the automotive industry and diverse part specifications, traditional production models face significant changeover challenges. Manual tray loading depends on worker training and job rotation adjustments; when faced with new materials, workers need to re-familiarize themselves with part orientation and placement requirements, which is time-consuming. Traditional rigid equipment requires mold changes and parameter re-adjustments, making the changeover process complex and hindering a quick response to orders for multiple varieties and small batches, thus restricting the production line's flexibility.

3. Insufficient Precision Affects Subsequent Assembly Quality

Automotive parts have stringent assembly precision requirements. Even minor placement deviations can cause subsequent process failures. Manual tray loading relies on the naked eye to identify the front/back, direction, and position of parts, and is prone to errors like misplacement, reversed orientation, or missing parts due to lack of concentration or fatigue. This is especially true for small components like precision fasteners and connectors, where placement consistency is hard to guarantee and can even lead to batch rework. Some traditional equipment can also suffer from material jams or positioning deviations, causing part scratches or placement errors that affect product yield.

4. Complex Management, Process Stability Hard to Guarantee

In manual tray loading modes, high personnel turnover and varying skill levels between new and experienced employees make it difficult to control process stability. The placement consistency of parts between different batches cannot be guaranteed, hindering the standardization of subsequent assembly. Furthermore, manual operations are susceptible to subjective factors, making full-process data traceability difficult. Once quality issues arise, it becomes challenging to investigate and trace the root cause, which is detrimental to the fine management of the production process.

II. Solution Advantages of Danikor's Flexible Tray Loader

1. High-Speed Stable Feeding, Unleashing Production Line Efficiency

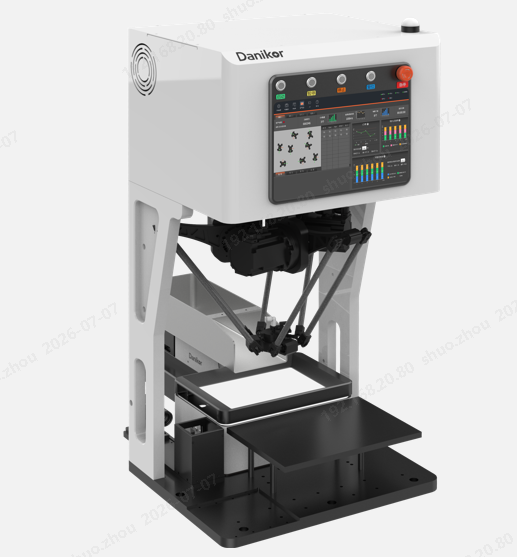

Danikor's flexible tray loader delivers stable feeding at a speed of 70 parts per minute, far exceeding manual tray loading capabilities. It can easily match the takt time of automated production lines, effectively resolving process connection issues. The equipment operates through an automated process: "hopper feeds to flexible vibratory feeder - flexible vibration disperses parts - vision system photographs and positions - spider robot picks and places on tray." This requires no manual intervention, ensuring continuous and stable output, significantly boosting production efficiency, and helping companies achieve capacity increases.

2. Quick Changeover Adaptation, Easily Handling Multi-Variety Materials

The equipment supports hardware tray changes in just 3 seconds, paired with a software system for one-click parameter switching. This allows for rapid adaptation to automotive parts of different specifications and shapes without the need for complex mold changes, easily meeting production demands for various vehicle models and batches. Whether it's engine screws, wiring terminals, precision washers, or small connectors, the equipment can quickly complete feeding and setup, dramatically shortening changeover times and enhancing production line flexibility.

3. High-Precision Stable Pick-and-Place, Ensuring Part Placement Consistency

Leveraging a vision positioning system and a pick-and-place accuracy of ±0.1mm, the equipment precisely identifies part orientation for stable picking and placement. This eliminates errors associated with manual operations, ensuring consistent placement position and orientation for every part. Simultaneously, the flexible vibration feeding method reduces the risk of part collision and scratching, protecting precision components from damage. This provides a reliable foundation for subsequent assembly processes and contributes to improved product yield.

4. Fully Automated Operation, Enhancing Production Management Stability

The equipment operates fully automatically without the need for constant human supervision, completely eliminating the impact of human factors on process stability and ensuring consistent tray loading processes across different production batches. Furthermore, the equipment enables real-time recording of feeding data, facilitating production process traceability and management. This helps companies establish standardized and normalized production workflows, reduces management risks associated with personnel changes, and enhances overall production stability.

Danikor's flexible tray loader directly targets the core pain points of manual labor and traditional equipment, offering an efficient, flexible, precise, and stable solution to help companies reduce costs and increase efficiency.
