In automated assembly applications involving conventional screws in the M2–M6 range, the choice of screw feeder directly affects production efficiency, product quality, and maintenance costs. Vibratory-bowl and step (escalator) feeders are the two dominant designs, and neither is universally superior; the key is to match the machine to the actual production requirements. Below, the selection logic is broken down from three perspectives—core characteristics, application scenarios, and brand references—to provide guidance for production planning.

1. Core-characteristic comparison of the two feeder types

Different mechanical designs create performance differences that translate into real production behavior; these differences are the fundamental basis for selection.

1.1 Vibratory-bowl feeder: the cost-effective, speed-first option

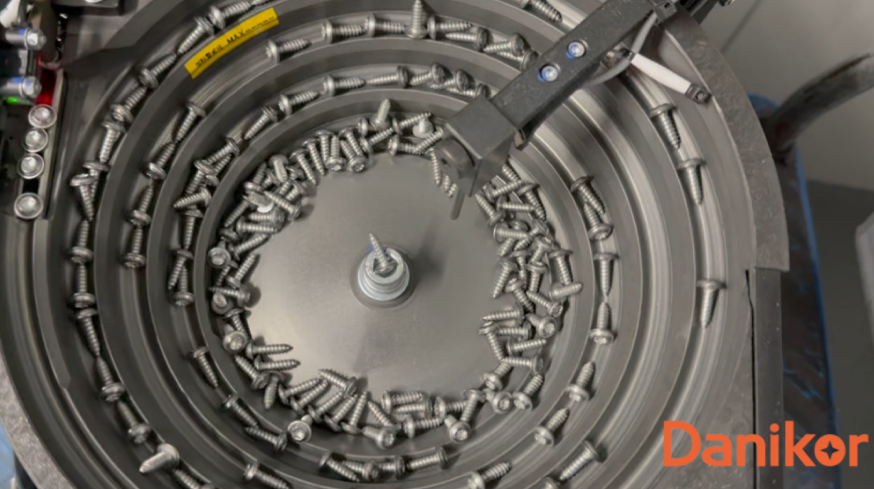

A vibratory-bowl feeder uses regulated vibration to move screws up a helical track while simultaneously orienting and selecting them, finally delivering them in an ordered stream. Its main strengths lie in speed and cost: the conveying cycle is faster, keeping pace with high-volume standardized production; the structure is relatively simple, the footprint is small, and routine maintenance is straightforward, so the overall investment is lower.

However, the vibrating principle also brings inherent drawbacks: screws tumble and rub against one another, which can create surface scratches or leave metallic debris; at the same time, screws can pile up or jam in the track, raising the probability of stoppages and reducing local cleanliness.

1.2 Step feeder: the stable, clean choice for precision work

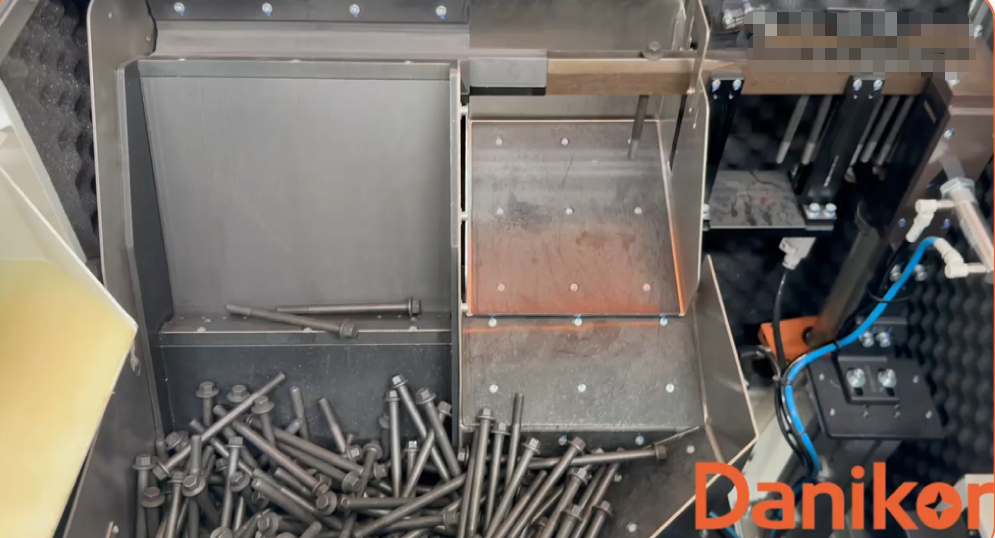

A step feeder uses mechanical, sequential transfer: pushers move screws along a series of “steps” and through multiple positioning stations before final delivery. Its advantages are stability and cleanliness: the absence of vibration greatly reduces inter-screw friction, enabling clean feeding and protecting plated or specially shaped screws; the fixed mechanical path has few disturbances, so the long-term jam rate is far lower than that of vibratory-bowl units.

2. A decision framework based on production scenarios

Selection must be tied to industry characteristics, quality requirements, and production tempo. The two typical scenarios below offer broadly applicable reference logic.

2.1 Prefer a vibratory-bowl feeder when the goal is high speed balanced with low cost in standardized production

When the scenario is “high volume, moderate precision, cost sensitive,” a vibratory-bowl feeder is usually the better fit. In household-appliance assembly, for example, screws are of uniform specification, demanded in large quantities, and surface cleanliness requirements are relaxed; the priority is fast line speed and low operating cost. The high throughput of a vibratory unit matches takt-time demands, and its simple construction and low maintenance expense reduce overall production spend, making it the favored choice for such cases.

2.2 Prefer a step feeder when the focus is on stability and cleanliness in precision manufacturing

In situations that impose strict demands on quality stability and environmental cleanliness, the step feeder’s advantages stand out. In new-energy batteries, motors, and electronic-control assemblies, for instance, a scratched screw can impair electrical conductivity and residual debris can become a major failure source; assembly accuracy is directly linked to product safety. The non-vibrating, clean feeding and low jam rate of step feeders eliminate these risks at the source.

Danikor step feeders, for example, optimize pusher tracks and separator architecture to lower the jam rate for standard screws even further; an outlier-screw rejection function can screen out screws with missing washers or O-rings, giving precision assembly more reliable material delivery. In addition, in the assembly of precision automotive or photovoltaic-inverter components, the high-accuracy posture control of these feeders satisfies stringent installation requirements.

3. Key selection factors and brand reference

Beyond core characteristics and scenario fit, long-term production needs must be weighed.

3.1 Key factors

• If screws have plated or coated surfaces, or if the product demands high cleanliness, choose a step feeder first; if surface condition is not critical, lean toward the speed advantage of a vibratory-bowl unit.

• When the line targets “zero jams, minimal rework,” the hard-mechanical transmission of a step feeder is more reliable; if model change-overs are infrequent and occasional manual clearing is acceptable, a vibratory-bowl unit offers better cost performance.

• Consider long-term operating cost: although a vibratory-bowl feeder is cheaper to buy, the hidden cost of frequent jam clearing and parts replacement must be included; a step feeder costs more up front but its low-failure nature cuts long-term maintenance expense.

3.2 Technical reference from brands

Danikor, a brand focused on tightening and feeding equipment, offers practical reference in step-feeder technology. Its machines use adaptive-track technology and closed-loop logic control for intelligent jam clearing, handle everything from standard screws to screws with captive washers, and can be linked to tightening systems to build a complete error-proofing architecture. Such specialized equipment provides a concrete technical benchmark for selection.

Conclusion

Selecting a conventional screw feeder is essentially a process of “requirement matching”: vibratory-bowl units lead in speed and cost, suiting large-volume standardized production; step feeders highlight stability and cleanliness, meeting the rigorous demands of precision manufacturing. By integrating product-quality standards, production tempo, and long-term maintenance needs—and by consulting technical solutions from brands such as Danikor—one can choose the feeder that truly fits the line, establishing solid upstream assurance for the tightening process.
